Aluminum Radiator with Electric Fan Shroud Thermostat Kit for Toyota 4Runner 4 Runner Pickup SR5 2.4 L4 MT 1984-1995, 3 Row

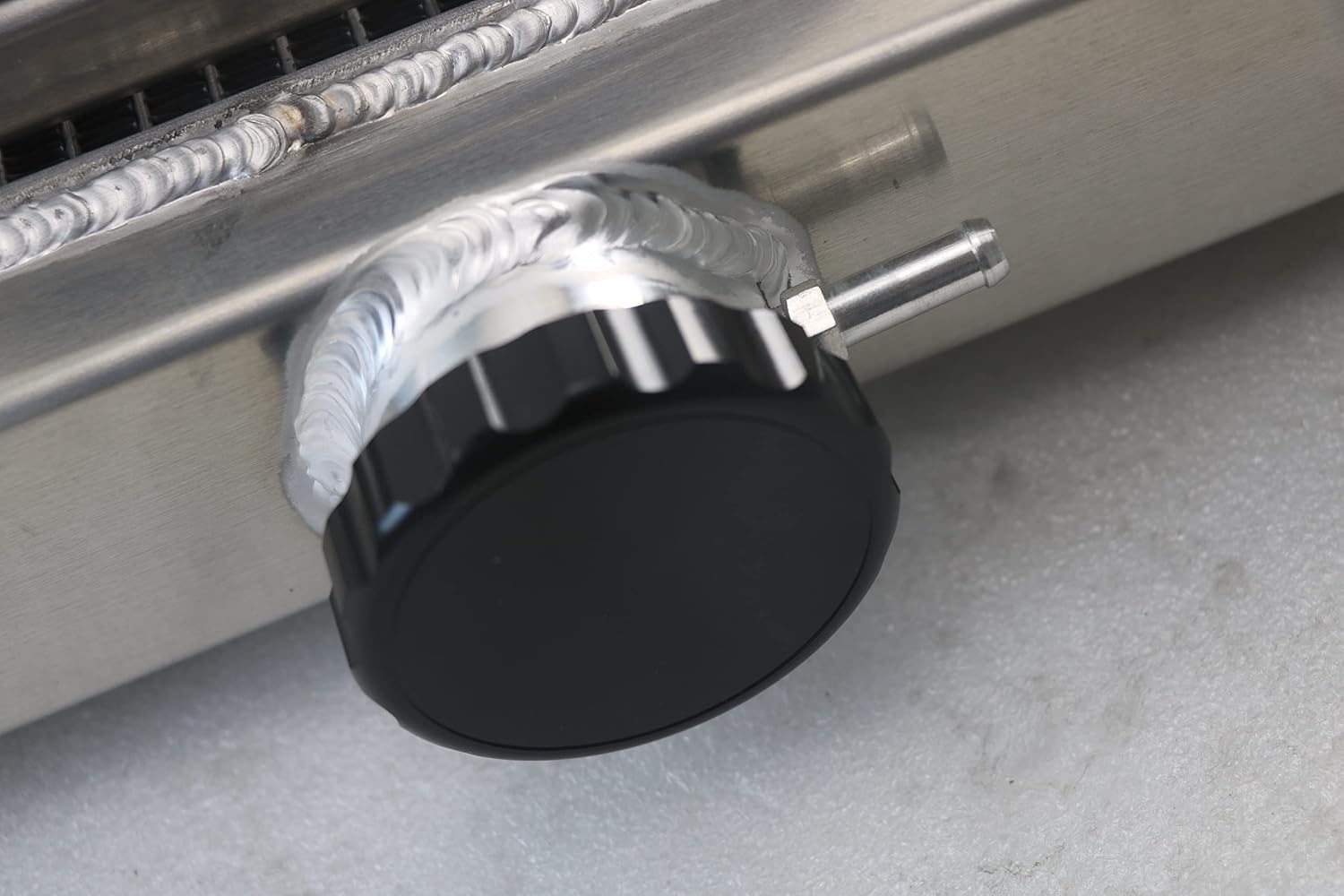

Radiator Details: Type: 3 Core Core Thickness: 1 3/4" Color: Silver Core/ Tank Material: All Aluminum Surface Finish: Aircraft Grade Raw Aluminum Upgraded Cap: CNC Machined Filler Neck and Cap Upgraded Drain Plug: OEM Style Brass Petcock Drain Delivery: Local Delivery Fitment Type: Direct Replacement WILL FIT MANUAL TRANSMISSIONS Transmission Oil Cooler: Not Included Part Number: 945,CC945,CU945,DPI945,KKS945,AE945,MC945,TO3010148,1641035110 Compatible with: Toyota 4Runner SR5 L4 2.4L 1992-1995 Toyota Pickup Base L4 2.4L 1984-1995 Toyota Pickup DLX L4 2.4L 1984-1995 Toyota Pickup LN55 DLX L4 2.4L 1986-1987 Toyota Pickup LN67 L4 2.4L 1987 Toyota Pickup LN76 L4 2.4L 1986 Toyota Pickup RN02 L4 2.4L 1993 Toyota Pickup RN60 L4 2.4L 1985 Toyota Pickup RN63 L4 2.4L 1986-1987 Toyota Pickup SR5 L4 2.4L 1984-1990 FAN DETAILS: Maximum Fan CFM: 2200±200 FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This set up will run Fans and pull air in through radiator. Package Include: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 1 X 14" Fan (Includes mounting kits) 1 X Thermostat Relay Kit

• [IMPORTANT PARAMETERS]Core size: 15 3/4'' H x 19 2/9'' W; Overall size: 20 1/8'' H x 23 4/9'' W; Core thickness: 1 3/4'' ; Top Hose Location & Size: Passenger 1 1/3'' ; Bottom Hose Location & Size: Driver 1 1/3''
• [ALL ALUMINUM]T-5052 aircraft grade aluminum radiator, the core of the radiator is welded in vacuum brazing furnace, no epoxy
• [GREAT PERFORMANCE]This all aluminum radiator is at least 30%-40% more efficient than OEM radiator
• [EASY TO INSTALL]Carefully crafted to exceptional OE standards for precise fit (No installation instructions)
• Fit type: Vehicle Specific
• Part number: CoolingSun-0016-2
